Raspberry Pi Camera Setup

The Raspberry Pi Camera Module 2 is a popular camera option for the Autonomous Driving Platform due to its compact size, ease of use, and compatibility with the Raspberry Pi Compute Module used in the car.

Raspberry Pi Camera

Setup

This only needs to be done once per camera installation.

Run the following commands in a terminal on the car to set up the Raspberry Pi Camera Module:

sudo /opt/nvidia/jetson-io/jetson-io.py

  • Pick Configure Jetson 24pin CSI Connector

  • Pick Configure for compatible hardware

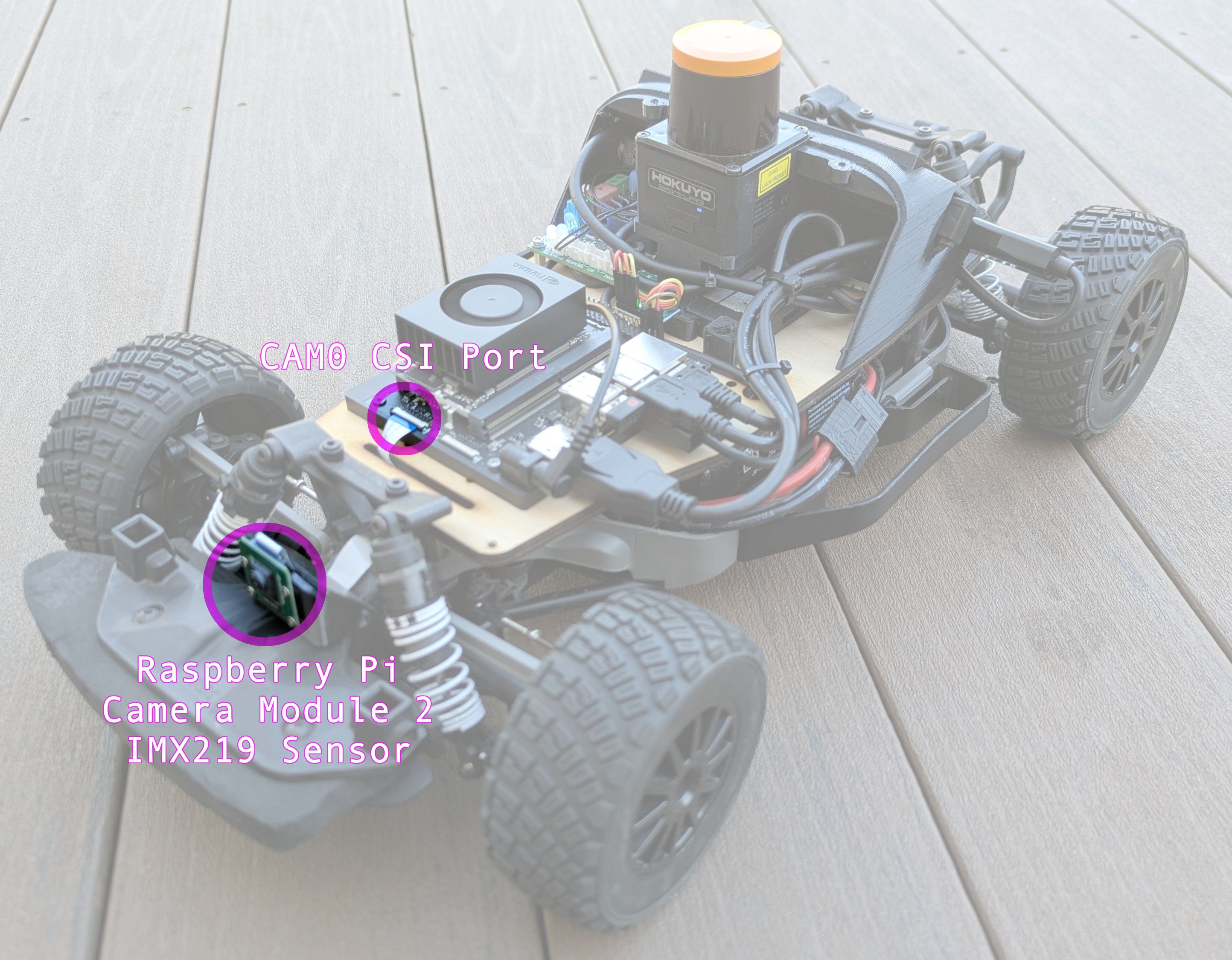

  • If you have one camera, plugged into port cam0, pick Camera IMX219-A

  • If you have two cameras, plugged into port cam0 and port cam1, pick Camera IMX219 Dual.

  • Pick Save pin changes.

  • Pick Save and reboot to reconfigure pins.

Running the camera node

After setting up the camera hardware, you can run the camera processing node using the following command:

ros2 run orin_rp2_csi mono_processor --ros-args -p width:=320 -p height:=240 -p framerate:=30 -p display_mode:="none"

Stereoscopic Camera Setup

Stereoscopic Camera Setup

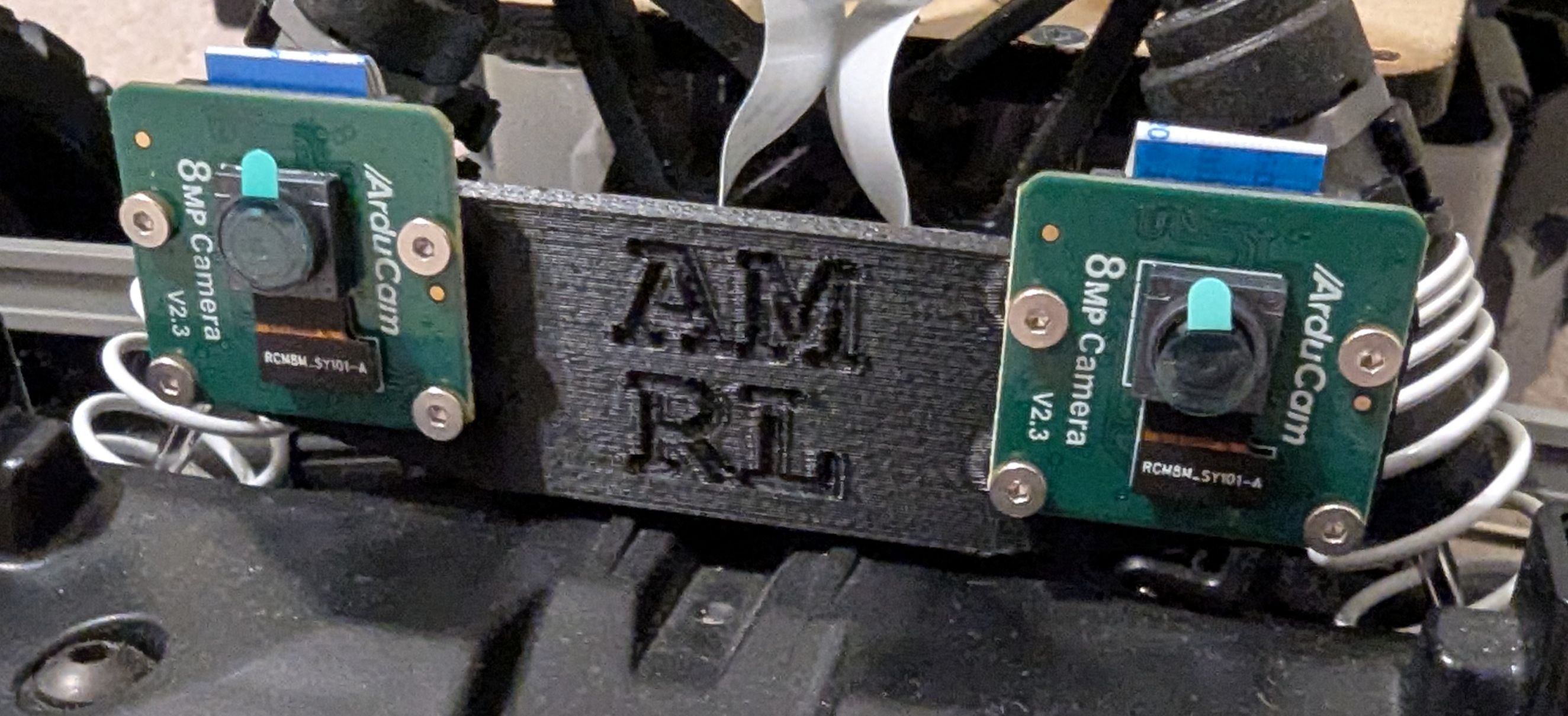

We have several stereoscopic camera setups available for the Autonomous Driving Platform that use two Raspberry Pi Camera Modules. These setups provide the hardware to compute depth. While the pi camera nodes have the framework for computing stereo depth, it is not tested. Students interested in computational geometry and computer vision is welcome to implement and test this functionality.

Troubleshooting

Captured image is invalid or empty

If you see the following error when running the mono_processor node, first try restarting the car. If that fails, re-configure the camera.

$ ros2 run orin_rp2_csi mono_processor --ros-args -p width:=320 -p height:=240 -p framerate:=30 -p display_mode:="none"
[INFO] [1760906220.374738176] [mono_processor]: MonoProcessor constructor started
Using pipeline: nvarguscamerasrc sensor-id=0 ! video/x-raw(memory:NVMM), width=320, height=240, framerate=30/1, format=NV12 ! nvvidconv ! video/x-raw, format=BGRx ! videoconvert ! video/x-raw, format=BGR ! appsink
Error generated. /dvs/git/dirty/git-master_linux/multimedia/nvgstreamer/gst-nvarguscamera/gstnvarguscamerasrc.cpp, execute:794 No cameras available
[ WARN:[email protected]] global cap_gstreamer.cpp:1728 open OpenCV | GStreamer warning: Cannot query video position: status=0, value=-1, duration=-1
[INFO] [1760906220.596398368] [mono_processor]: Successfully loaded calibration from: /home/orin/roboracer_ws/params/cameras/0/calibration.txt
MonoProcessor constructor completed
Display mode: none
Image format: raw
[INFO] [1760906220.596873920] [mono_processor]: About to initialize ImageTransport
[INFO] [1760906220.641440576] [mono_processor]: Publishing raw images to topic: camera_0/image_raw
[INFO] [1760906220.643998560] [mono_processor]: Publishing rectified images to topic: camera_0/image_rect
[INFO] [1760906220.644077184] [mono_processor]: Image format: raw
[INFO] [1760906220.644113664] [mono_processor]: About to call shared_from_this() for timer
[INFO] [1760906220.644148512] [mono_processor]: shared_from_this() succeeded
[ERROR] [1760906220.677549344] [mono_processor]: Captured image is invalid or empty
